Introduction of Guangzhou International Beauty Expo
Guangzhou International Beauty Expo, referred to as Guangzhou Beauty Expo, was founded in 1989 by Ms. Ma Ya. In 2012, Guangzhou International Beauty Expo was renamed as Guangdong International Beauty Expo. [1] In May 2015, Guangdong International Beauty Expo officially changed its name to "China International Beauty Expo", namely China International Beauty Expo, referred to as CIBE in English. [1] Marched into Shanghai in May 2016, and swung to Shenzhen in 2019. So far, it has formed a layout of 6 exhibitions a year in Beijing, Shanghai, Guangzhou and Shenzhen, covering all fields of the beauty industry and the big health industry. [1] Relying on its advantages in 2020, the 2020 Guangzhou International Live Broadcasting Industry Expo will be created. From 2021, it will become a global super exhibition with a strong lineup of 7 times a year
Introduction of Tube Filling Machine exhibited at the Beauty Expo

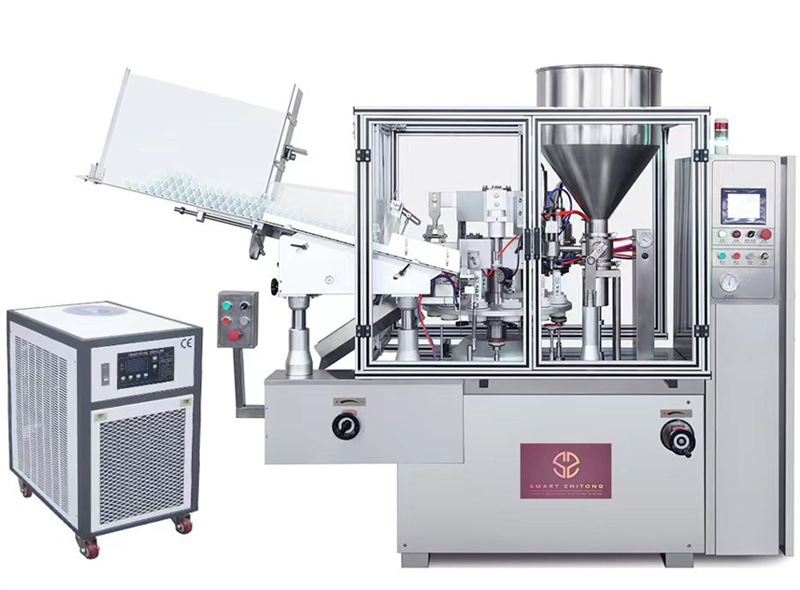

During the 62nd China (Guangzhou) International Beauty Expo zhitong will be exhibited our one of the main Tube Filling Machine(2 in 1)
Application range oftube filler machine
This equipment is used for filling and sealing plastic tube and aluminum-plastic pipes.
Cosmetics industry: eye cream, facial cleanser, sunscreen, hand cream, body milk, etc.
Daily chemical industry: toothpaste, cold compress gel, paint repair paste, wall repair paste, pigment, etc.
Pharmaceutical industry: cooling oil, ointment, etc.
Food industry: honey, condensed milk, etc.
Process flow of tube filler machine
Automatically or manually intubating the tube to the turntable mold base → automatic tube pressing → automatic marking → automatic filling → automatic heating → automatic tail clamping → automatic tail cutting → finished product
Product features of Tubes Filling Machine
1）Tubes Filling Machine adopted Touch screen operation, humanized design, simple and intuitive operation
2) Cylinder filling control ensures the accuracy of filling.
3) Photoelectric sensor and pneumatic door linkage control.
4) Pneumatic executive control valve, efficient and safe. The flow channels can be adjusted and cleaned independently.
5) Adopt anti-drip and anti-drawing filling nozzle structure design.
6) The material of Tube Fill Machine is composed of stainless steel and anodized aluminum alloy. The part connected with the material is made of SUS304 stainless steel.
Tube Fill Machine Related parameters
|
Model no |
Nf-40 |
NF-60 |
NF-80 |
NF-120 |
|
Tube material |
Plastic aluminum tubes .composite ABL laminate tubes |
|||
|
Station no |
9 |
9 |
12 |
36 |
|
Tube diameter |
φ13-φ60 mm |
|||
|
Tube length(mm) |
50-220 adjustable |
|||
|
viscous products |
Viscosity less than 100000cpcream gel ointment toothpaste paste food sauce and pharmaceutical, daily chemical, fine chemical |
|||
|
capacity(mm) |
5-250ml adjustable |
|||
|
Filling volume(optional) |
A:6-60ml, B:10-120ml, C:25-250ml, D:50-500ml (Customer made available) |
|||
|
Filling accuracy |
≤±1％ |
|||
|
tubes per minute |
20-25 |
30 |
40-75 |
80-100 |
|
Hopper Volume: |
30litre |
40litre |
45litre |
50 litre |
|
air supply |
0.55-0.65Mpa 30 m3/min |
340 m3/min |
||
|
motor power |
2Kw(380V/220V 50Hz) |
3kw |
5kw |
|
|
heating power |
3Kw |
6kw |
||
|
size(mm) |
1200×800×1200mm |
2620×1020×1980 |
2720×1020×1980 |
3020×110×1980 |
|
weight (kg) |
600 |
800 |
1300 |
1800 |
(1) Filling range: 20-200ml
(2) Filling speed of Tube Fill Machine 30-80 pieces/min (different according to different products).
(3) tube diameter range: 16-50mm.
(4) tube height range: 80-220mm.
(5) Voltage: 380V 50/60HZ.(can customizable)
(6) Air pressure: 0.4-0.6Mpa.
Smart zhitong is a comprehensive and Tube Fill Machine
and equipment enterprise integrating design, production, sales, installation and service. It is committed to providing you with sincere and perfect pre-sales and after-sales services, benefiting the field of cosmetic equipment
